Compact Pneumatic Screw-Cap IBC Mixer MKZP-1000
    Teknomatik
    TEKNOMATIK

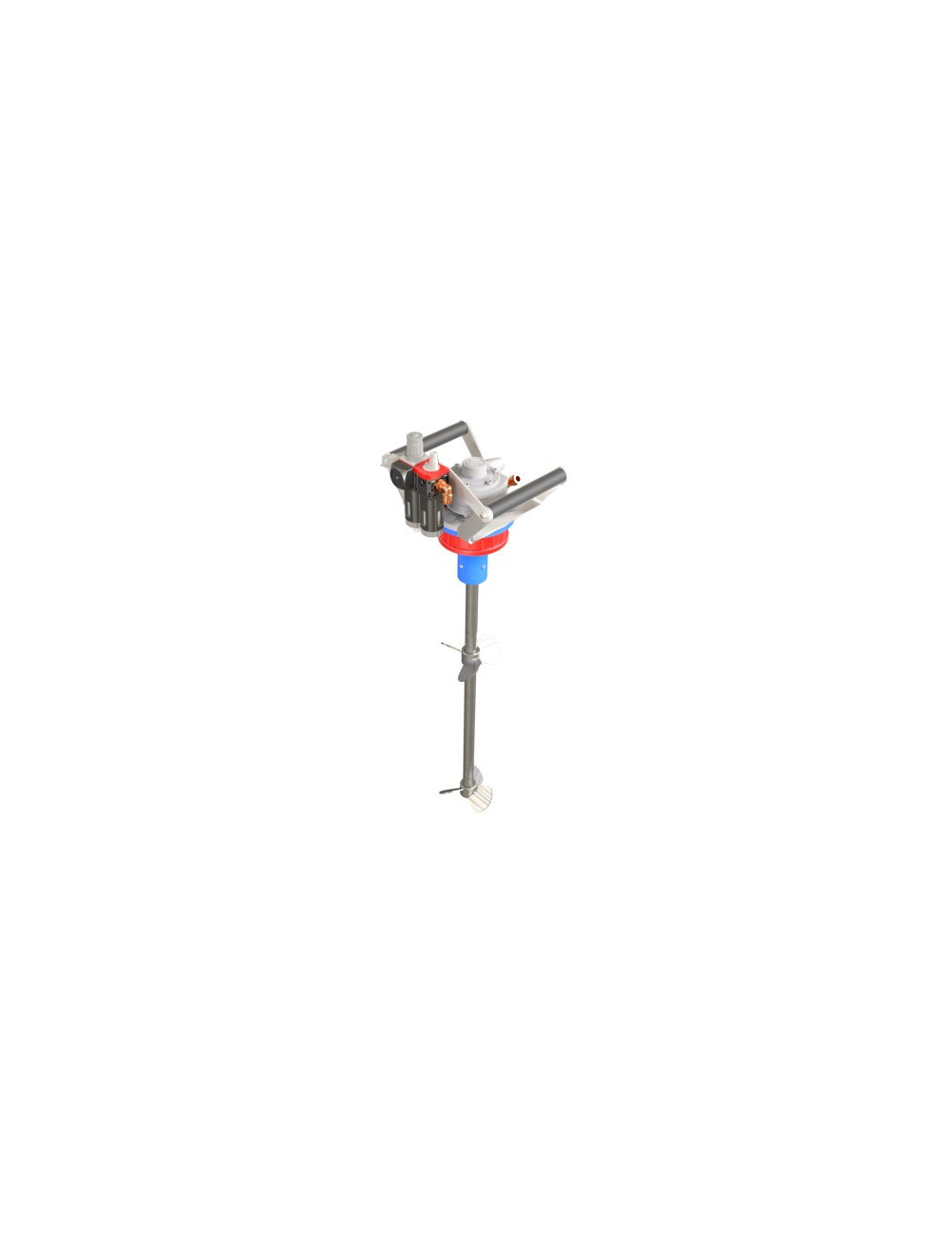

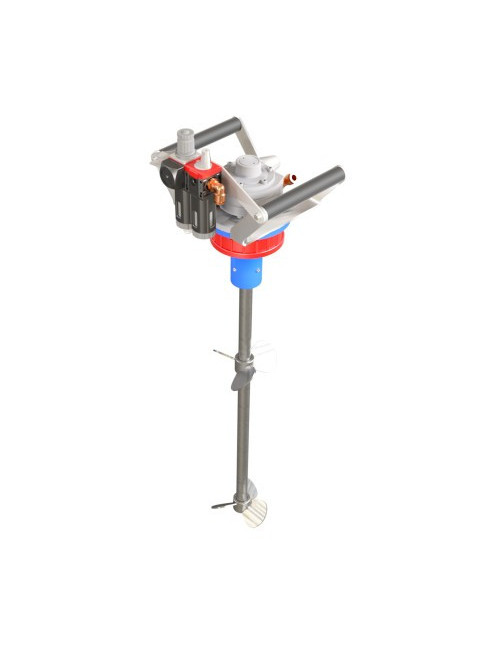

    Compact Pneumatic Screw-Cap IBC Mixer MKZP-1000

    Reference: MKZP-1000
    €3,038.10
    VAT included
    2 470,00 €
    Net

    Compact pneumatic IBC mixer MKZP-1000 without a bridge, mounted directly in the IBC screw cap. Runs on compressed air at 6–7 bar with stepless speed control by valve, double ∅140 mm impeller, ∅150 or ∅225 mm opening chosen when ordering. For liquids up to 1,000 mPa·s. The standard version needs lubricated supply air; oil-free version at extra cost. Not ATEX certified. Made in Poland.

    Quantity
      In stock

    Add to favorites Add to compare


    Security policy



    Delivery policy



    Return policy

    Product Details

    Teknomatik

    Data sheet

    Maximum viscosity of mixing liquid
    1000mPa*s
    Stirrer motor
    pneumatic motor;
    Engine power
    1,1kW
    Stirrer nominal revolutions
    adjustable from 0 - 1500 rpm
    Stirrer’s impeller
    turbine , double stirrer
    Destiny
    IBC container with 150mm or 225mm fill inlet equipped with screw cap
    Maximum air demand
    0,6MPa; 1900l/min

    Quick Compare

    Product
    		 Compact cap-mount pneumatic IBC mixer MKZP-1000 - screws onto DN150 cap, compressed air 6-7 bar, up to 1000 mPas Compact Pneumatic Screw-Cap IBC Mixer MKZP-1000 Pneumatic IBC mixer MKP-5000 for 1000 L IBC totes — base version with St3 painted bridge, by Teknomatik IBC Air Mixer — Pneumatic IBC Mixer MKP-5000 (5,000 mPa*s) Pneumatic Lid-Mount Drum Mixer MBPP-1000 Pneumatic Lid-Mount Drum Mixer MBPP-1000 — HDPE Plastic Drums
    Availability
    Price
    €3,038.10
    €3,044.25
    €3,038.10
    Description

    Compact pneumatic IBC mixer MKZP-1000 without a bridge, mounted directly in the IBC screw cap. Runs on compressed air at 6–7 bar with stepless speed control by valve, double ∅140 mm impeller, ∅150 or ∅225 mm opening chosen when ordering. For liquids up to 1,000 mPa·s. The standard version needs lubricated supply air; oil-free version at extra cost. Not ATEX certified. Made in Poland.

    Pneumatic IBC mixer MKP-5000 for 1000 l IBCs – for plants with a compressed-air network (6–7 bar) and no electricity at the container. Stepless speed control by valve, folding ∅350 mm propeller in 316Ti stainless steel, up to 5,000 mPa·s. The standard version needs lubricated supply air; oil-free version at extra cost. Not ATEX – for hazardous areas choose the MKP-5000 Ex. Made in Poland.

    The pneumatic drum mixer for shops that do not want to run electricity into the mixing area. Same lid-mount platform as the MBEP series, but with an oil-free air motor running from a standard 6–7 bar shop air line. Customers tell us the deciding factor is usually one of two things: avoiding the cost of an electric install in the mixing zone, or working with solvents where a no-spark drive is the safer choice on principle.
    Maximum viscosity of mixing liquid
    		 1000mPa*s 5000 mPa*s 500 mPa*s
    Stirrer motor
    		 pneumatic motor; pneumatic motor; pneumatic motor;
    Engine power
    		 1,1kW 1,1kW 1,1kW
    Stirrer nominal revolutions
    		 adjustable from 0 - 1500 rpm adjustable from 100 - 300 rpm adjustable from 0 - 1500 rpm
    ATEX
    		 NO
    Stirrer’s impeller
    		 turbine , double stirrer ∅350 mm unfoldable, made of the 316Ti stainless steel turbine , double stirrer
    Destiny
    		 IBC container with 150mm or 225mm fill inlet equipped with screw cap Plastic barrel with clamping ring 200L
    Maximum air demand
    		 0,6MPa; 1900l/min 0,6MPa; 1900l/min 0,6MPa; 1900l/min
