    Open-Head Drum Mixer MBEO-500 — Electric, Top-Clamp Mount
    Teknomatik
    TEKNOMATIK

    Open-Head Drum Mixer MBEO-500 — Electric, Top-Clamp Mount

    Reference: MBEO-500
    €1,857.30
    VAT included
    1 510,00 €
    Net

    The drum mixer for open-head drums — the kind with a bolted lid you can take off completely. Top-clamp mount around the drum rim, full-size propeller drops straight into the open drum. Most of the MBEO-500 units we ship go to furniture coating shops and small paint manufacturers working with water-based paints, primers and light coatings in steel or fibre drums.

    Quantity
      In stock

    Add to favorites Add to compare


    Security policy



    Delivery policy



    Return policy

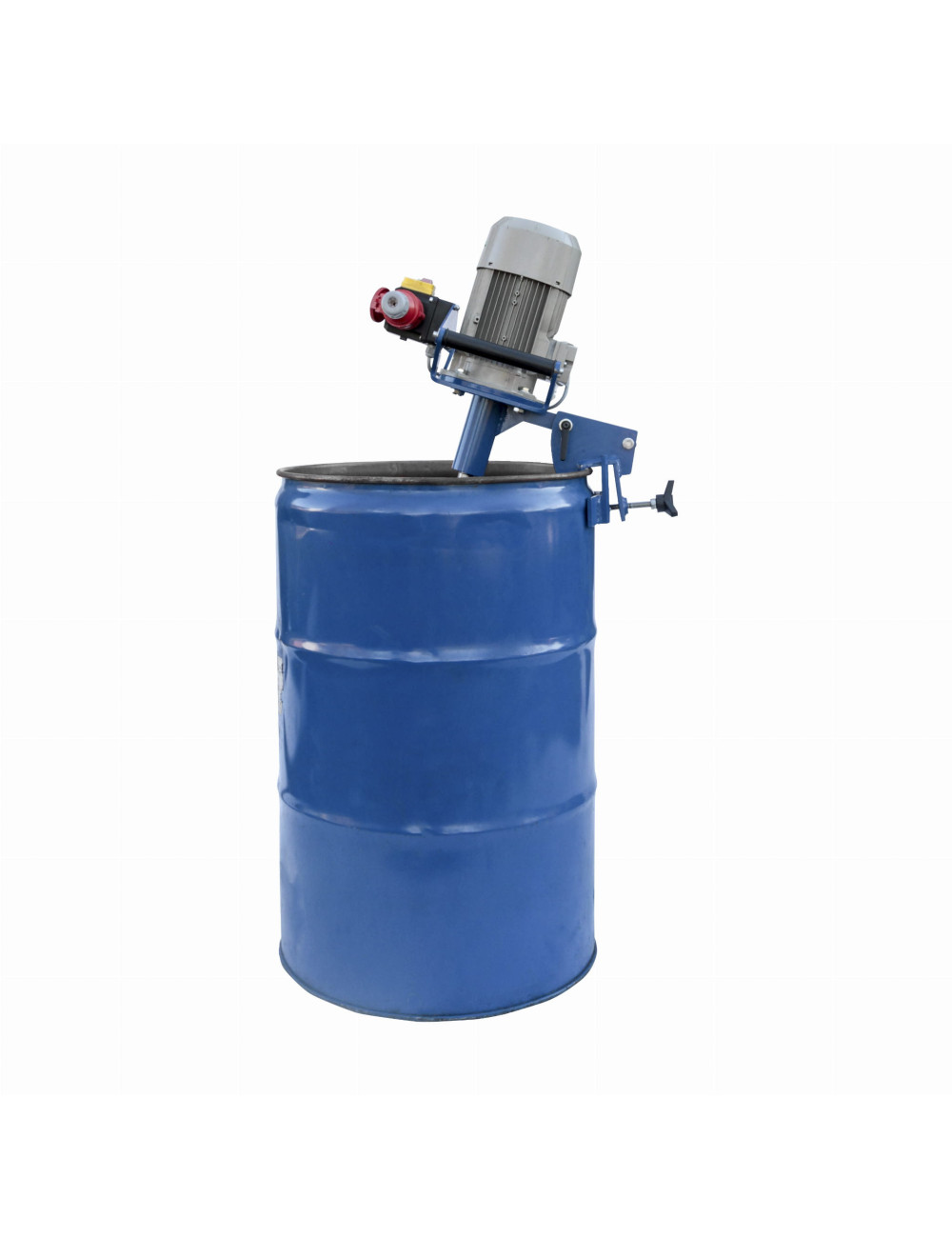

    Open-Head Drum Mixer MBEO-500 (Top-Clamp Mount)

    The MBEO-500 is the drum mixer for open-head drums — the kind with a bolted lid you can take off completely so the whole top of the drum is accessible. It clamps around the drum rim with a top clamp and drops a full-size folding propeller straight into the open drum. Different mount than the lid-mount MBEP series, and a different customer base.

    Most MBEO-500 units we ship go to furniture coating shops and small paint manufacturers. The typical job is mixing water-based primers, light alkyd paints or wood stains in steel or fibre drums between batches. Some food processors use it too, when they buy ingredients in open-head steel drums and need to re-homogenise before transferring to the production line.

    What this version handles

    • Water-based paints, primers and stains in furniture coating shops.
    • Small paint manufacturers — colour matching, tinting, batch finishing in open-head drums.
    • Light alkyd lacquers and wood treatment products (non-Ex applications).
    • Food ingredients delivered in open-head steel drums — oils, syrups, concentrates.
    • Cleaning agents and detergent concentrates in 200 L steel drums.

    Specifications

    Max. viscosity 500 mPa*s (cP)
    Drive electric 400 V three-phase (230 V single-phase on request)
    Motor power 0.55 kW (~0.75 HP)
    Motor type TEFC IP55
    Speed 200 rpm

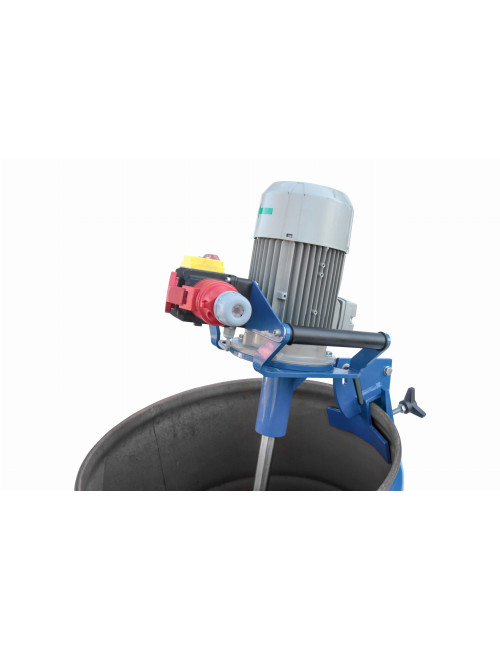

    Mount top clamp around the drum rim — for open-head drums
    Propeller folding ∅350 mm, 316Ti food-contact (EC 1935/2004)
    Shaft stainless steel
    Drum compatibility open-head drums 120–220 L (steel, fibre, plastic with bolted lid)
    Lead time typically 2 weeks

    How to know if your drum is open-head

    If the top of the drum is a separate piece held on by a metal ring with a bolt or quick-release clamp, it is an open-head drum. You can take the whole top off. The MBEO-500 clamps around the now-exposed rim. If instead your drum is a sealed plastic chemical drum where you only see a small lid you twist off, that is not an open-head drum — you need the lid-mount MBEP-500 instead.

    Related models

    • MBEO-5000 — same open-head mount, heavier media up to 5,000 mPa*s.
    • MBEP-500 — for sealed plastic drums with a removable HDPE lid.
    • MBPP-1000 — pneumatic if your shop has no electricity in the mixing area.

    Full range on the Drum Mixers (Barrel Mixers) category page.

    Product Details

    Teknomatik

    Data sheet

    Maximum viscosity of mixing liquid
    500 mPa*s
    Stirrer motor
    electric motor 400V
    Engine power
    0,75 kW
    Stirrer nominal revolutions
    900 rpm;
    ATEX
    NO
    Stirrer’s impeller
    turbine , double stirrer

    Quick Compare

    Product
    		 Open-Head Drum Mixer MBEO-500 — Electric, Top-Clamp Open-Head Drum Mixer MBEO-500 — Electric, Top-Clamp Mount Lid-Mount Drum Mixer MBEP-500 | High-Speed, 0.75 kW Lid-Mount Drum Mixer MBEP-500 — Electric, High-Speed, HDPE Plastic Drums 120–220 L Heavy-Duty Drum Mixer MBEO-5000 — Open-Head, 1.1 kW Heavy-Duty Open-Head Drum Mixer MBEO-5000 — Electric, 1.1 kW Heavy-Duty Lid-Mount Drum Mixer MBEP-5000 | 1.1 kW Heavy-Duty Lid-Mount Drum Mixer MBEP-5000 — Electric, HDPE Plastic Drums
    Availability
    Price
    €1,857.30
    €1,857.30
    €1,857.30
    €1,857.30
    Description

    The drum mixer for open-head drums — the kind with a bolted lid you can take off completely. Top-clamp mount around the drum rim, full-size propeller drops straight into the open drum. Most of the MBEO-500 units we ship go to furniture coating shops and small paint manufacturers working with water-based paints, primers and light coatings in steel or fibre drums.

    The MBEP-500 is our own design for HDPE plastic drums with a removable lid, 120–220 L. The mixer is built into the original drum lid — a construction rarely found on the market. A gearless 0.75 kW motor running at a fixed 900 rpm gives strong shear for water-based paints, concentrates, AdBlue and food products. Frequency inverter available as an option (stepless 400–900 rpm). Folding 316Ti stainless steel propeller. Viscosity up to 500 mPa*s. Manufacturer: Teknomatik.

    The heavy-duty version of our open-head drum mixer. Same top-clamp mount as the MBEO-500, but with a 1.1 kW (1.5 HP) motor that handles media up to 5,000 mPa*s. Customers buy this version for thicker solvent paints, polyester resins, PUR adhesives and bituminous compounds delivered in steel drums.

    Same lid-mount design as the MBEP-500, scaled up for thicker chemistry. The MBEP-5000 takes the same idea of integrating the mixer directly into the HDPE drum lid and pairs it with a 1.1 kW (1.5 HP) motor that handles media up to 5,000 mPa*s. This is the version chemistry plants buy when their drums hold something heavier than a typical water-based product.
    Maximum viscosity of mixing liquid
    		 500 mPa*s 500 mPa*s 5000 mPa*s 5000 mPa*s
    Stirrer motor
    		 electric motor 400V electric motor 400V electric motor 400V electric motor 400V
    Engine power
    		 0,75 kW 0,75 kW 0,75 kW 0,75 kW
    Stirrer nominal revolutions
    		 900 rpm; 900 rpm; 140 rpm 186 rpm
    ATEX
    		 NO NO
    Stirrer’s impeller
    		 turbine , double stirrer turbine , double stirrer blade, double stirrer blade, double stirrer
    Destiny
    		 200L open top plastic barrel with clamping ring 200L open top plastic barrel with clamping ring

    Safety
