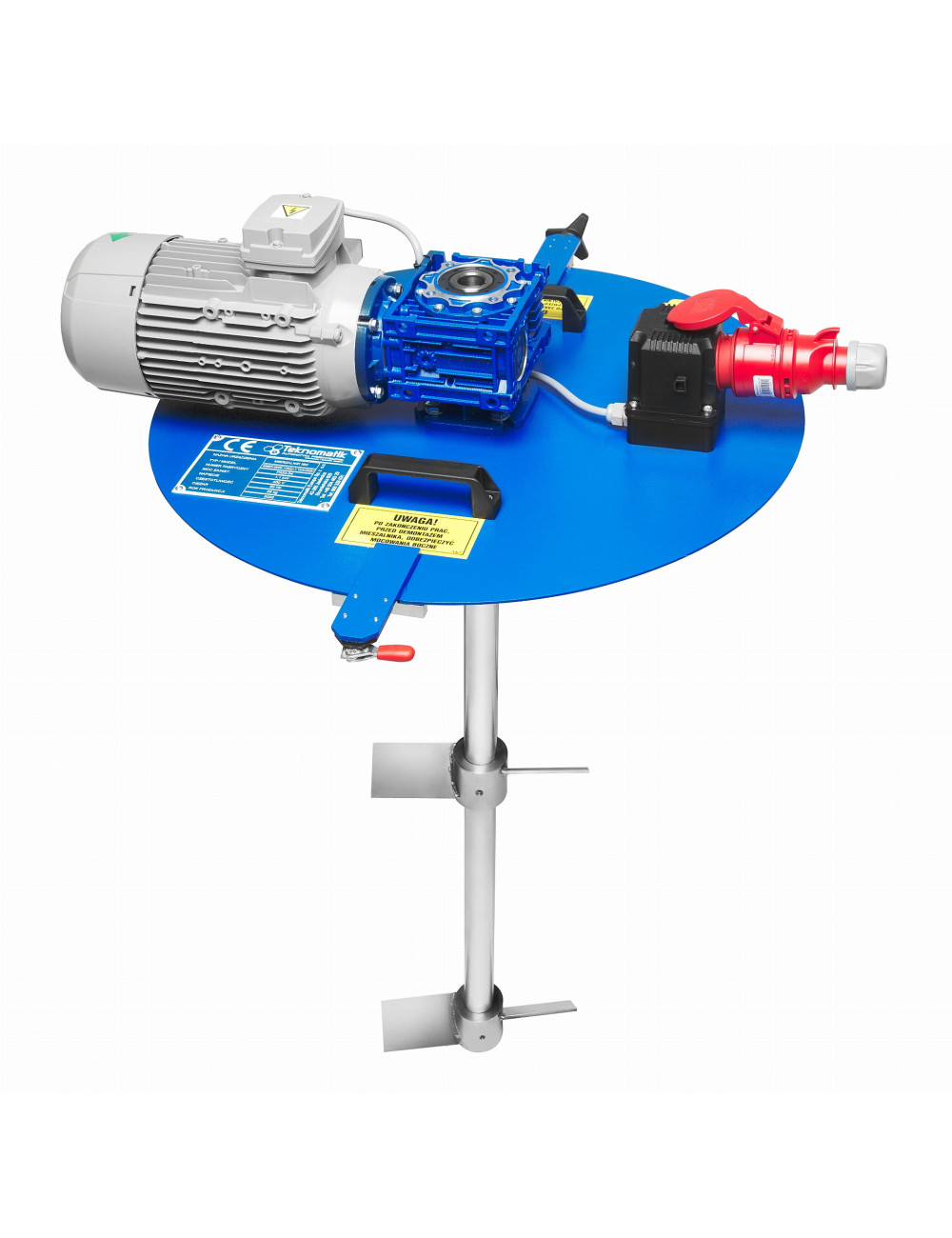

Heavy-Duty Open-Head Drum Mixer MBEO-5000 — Electric, 1.1 kW
    Teknomatik
    TEKNOMATIK

    Heavy-Duty Open-Head Drum Mixer MBEO-5000 — Electric, 1.1 kW

    Reference: MBEO-5000
    €1,857.30
    VAT included
    1 510,00 €
    Net

    The heavy-duty version of our open-head drum mixer. Same top-clamp mount as the MBEO-500, but with a 1.1 kW (1.5 HP) motor that handles media up to 5,000 mPa*s. Customers buy this version for thicker solvent paints, polyester resins, PUR adhesives and bituminous compounds delivered in steel drums.

    Quantity
      In stock

    Add to favorites Add to compare


    Security policy



    Delivery policy



    Return policy

    Heavy-Duty Open-Head Drum Mixer MBEO-5000

    The MBEO-5000 is the heavy-duty version of our open-head drum mixer. Same top-clamp mount as the MBEO-500, but with a bigger motor — 1.1 kW (1.5 HP) instead of 0.55 kW — and three mechanical speeds for batches that need adjustable rpm. Viscosity range goes up to 5,000 mPa*s.

    This is the version we ship when the open-head drum holds something heavier than water-based paint. Solvent-bearing alkyd and polyurethane coatings, polyester resins, PUR adhesives, bituminous compounds, dense food intermediates. The same furniture coating shops that buy the MBEO-500 for water-based products often also buy the MBEO-5000 for their solvent paint line.

    What this version handles

    • Solvent-based paints and lacquers — alkyd, polyurethane, nitro (non-Ex areas).
    • Polyester and epoxy resins in steel drums.
    • Industrial adhesives — PUR, MS, diluted hot-melt.
    • Bituminous compounds and waterproofing products.
    • Heavy food intermediates — concentrated syrups, dense oils, molasses in open-head drums.

    Specifications

    Max. viscosity 5,000 mPa*s (cP)
    Drive electric 400 V three-phase
    Motor power 1.1 kW (~1.5 HP)
    Motor type TEFC IP55
    Speed 200 rpm (3 mechanical speeds: 140 / 200 / 280)
    Mount top clamp around the drum rim — for open-head drums
    Propeller folding ∅350 mm, 316Ti (EC 1935/2004)
    Shaft stainless steel
    Drum compatibility open-head drums 120–220 L (steel, fibre, plastic with bolted lid)
    Lead time typically 2 weeks

    Not ATEX

    The MBEO-5000 is electric and not ATEX-certified. If your drum contains solvent vapours and your area is formally classified, you need certified equipment. We do not currently offer an ATEX-rated drum mixer in this size as a catalogue item — for solvent chemistry in a classified zone we either build a custom-certified version (talk to us) or recommend the IBC-side MKP-5000 Ex if you can move from drums to IBC totes.

    For informal solvent work without a classified zone, the pneumatic MBPP-1000 is the safer drum-format option (naturally intrinsically safe drive, lower viscosity range).

    Related models

    • MBEO-500 — same open-head mount, lighter motor for water-based products.
    • MBEP-5000 — same viscosity range but for sealed plastic drums with HDPE lid.
    • MKE-5000 — IBC equivalent for 1000 L totes.

    Full range on the Drum Mixers (Barrel Mixers) category page.

    Product Details

    Teknomatik

    Data sheet

    Maximum viscosity of mixing liquid
    5000 mPa*s
    Stirrer motor
    electric motor 400V
    Engine power
    0,75 kW
    Stirrer nominal revolutions
    140 rpm
    ATEX
    NO
    Stirrer’s impeller
    blade, double stirrer
