| Turbine stirrer: | Device intended for mixing fluids of viscosity up to 10000mPa*s; |
| Â | the system consist of unfolded stirrer and vertical transmission shaft set in the worm transmission sleeve; |
|  | Impeller equipped with set of blades inclined approx at an angle of 45° which ensure axial and radial flow of liquids inside the IBC container. Automatically unfoldable; |
| Â | Impeller with an external diameter of the blades of approx 350mm and a shaft made of 316TI grade acid-proof steinless steel; |

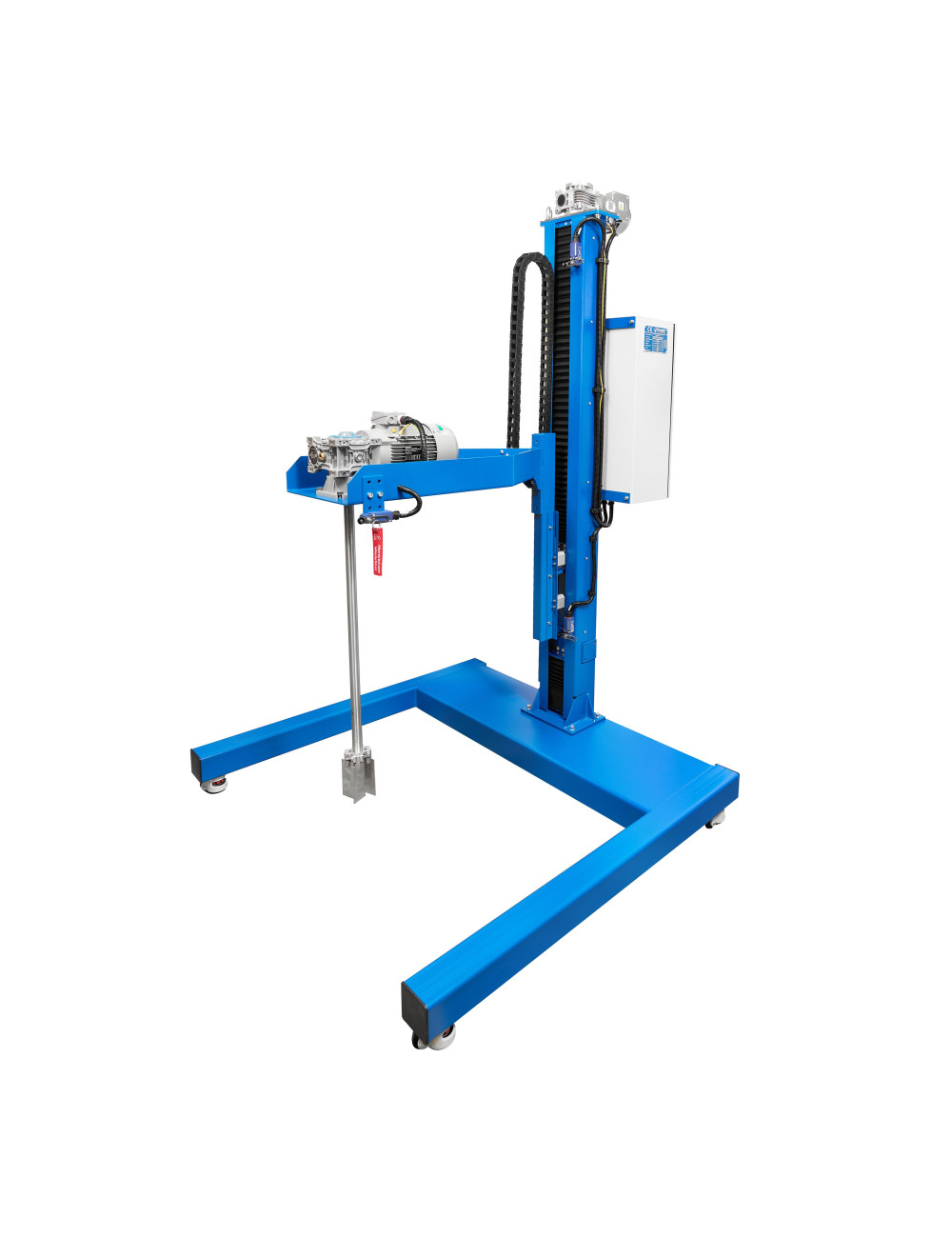

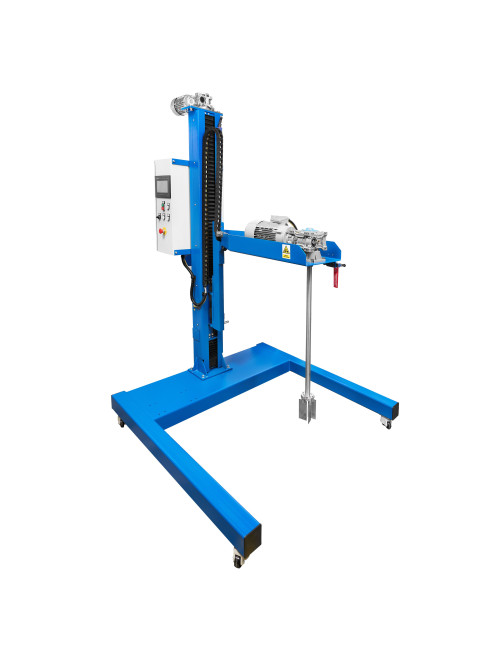

| Load-bearing frame + lifting system: | The load-bearing frame made of S235 structural steel, powder painted in a RAL colour selected by the customer; |
| Â | Device equipped with mechanical arm lifting system linked to the turbine stirrer; |
| Â | Lifting mechanism based on system including a trapezoidal bolt and a set linear guides; |
| Â | A three-phase gear motor IP54 applied in system drive; |
| Â | Clutchless system, with a limit of maximum upper and lower position of the stirrer. |

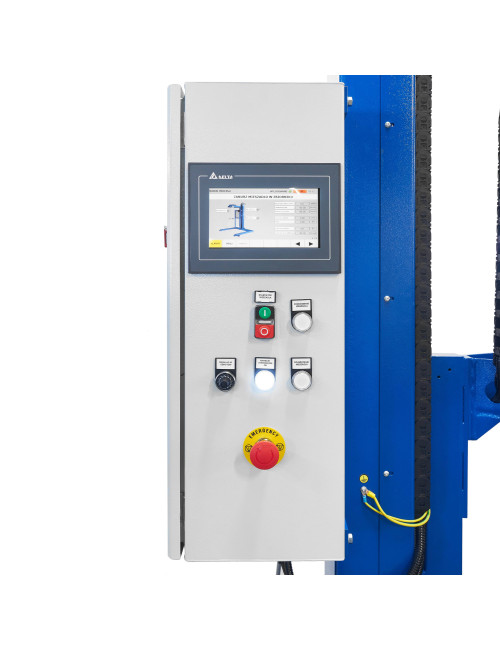

| Automotiion: | System equipped with a control cabinet mounted on mixer frame, allow to control a system; |
| Â | Functional buttons: START, STOP, RESET, SAFETY SWITCH; |
| Â | Up/Down stirrer lifting system control; |
| Â | Potentiometer provied for smooth control of strirrer rotational speed; |
| Â | Timer for programming stirrer deactivation time power supply: 400V. |
| Â | Â |
| Â | Contact number: +48 788 870 753 |
| Â | e-mail: sales@teknomatik.eu |
Product Details
Data sheet
- Maximum viscosity of mixing liquid
- 10000 mPa*s
- Stirrer motor
- electric motor 400V
- Stirrer nominal revolutions
- 200 rpm (available speed: 140/200/280 rpm);
- Stirrer’s impeller
- ∅350 mm unfoldable, made of the 316Ti stainless steel
