| Blade stirrer: | Device intended for mixing fluids of viscosity up to 10000mPa*s; |
| The system consist of unfolded stirrer and vertical transmission shaft set in the worm transmission sleeve; | |
| Impeller with an external diameter of the blades of approx 350mm and a shaft made of 316TI grade acid-proof steinless steel; | |
| Impeller equipped with set of blades inclined approx at an angle of 45° which ensure axial and radial flow of liquids inside the IBC container. Automatically unfoldable. | |

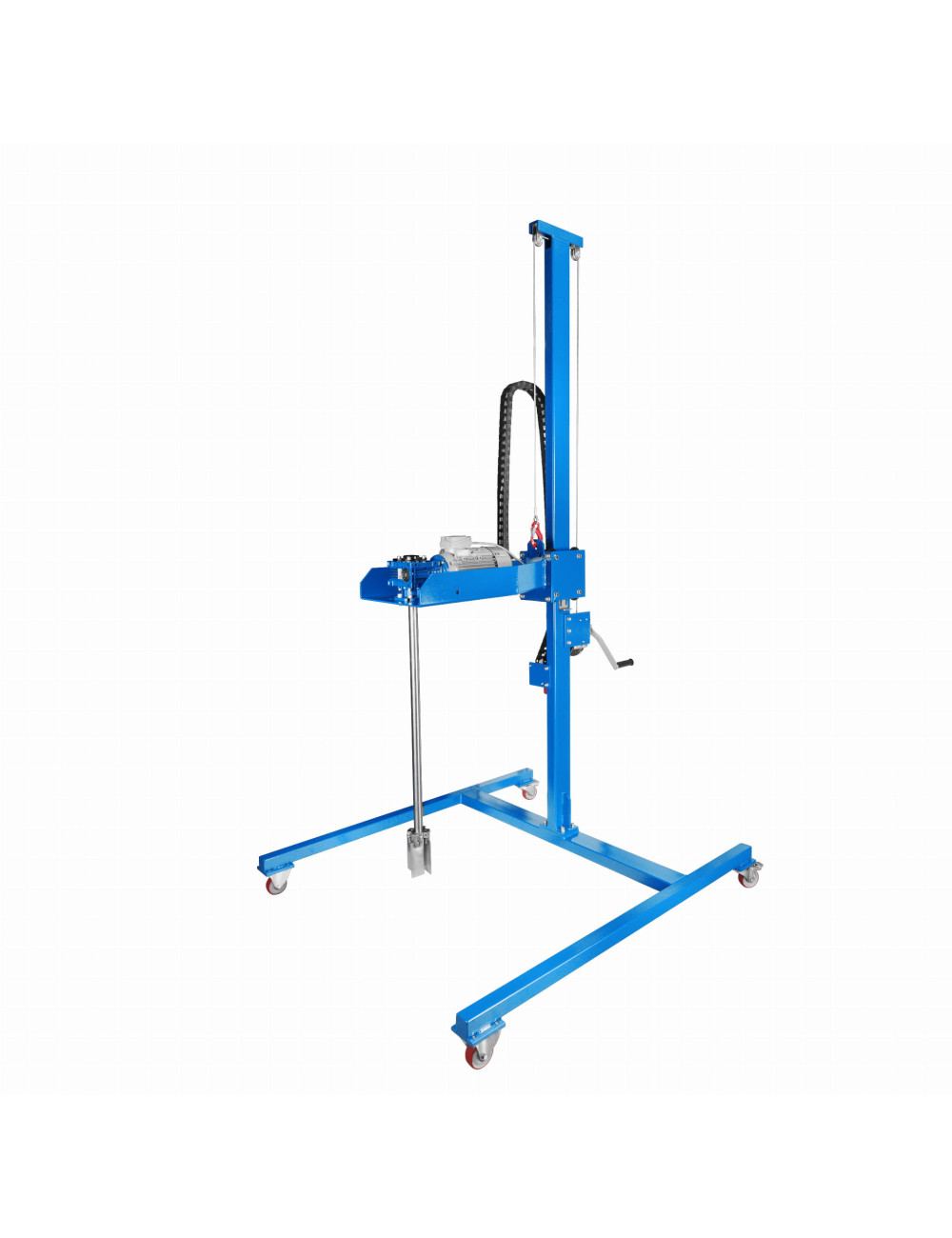

| Load-bearing frame + lifting system: | The load-bearing frame made of S235 steel, structural powder painted in a RAL colour selected by the customer; |
| Device equipped with manual arm lifting system linked to the turbine stirrer; | |

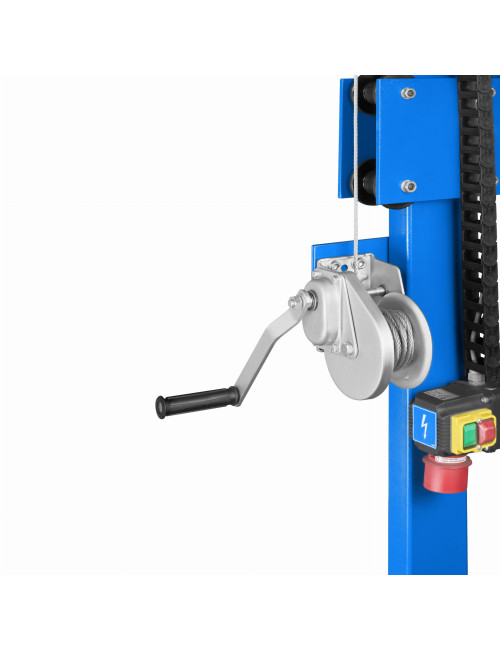

| Lifting mechanism based on system including a rope blocks and manual lift with break. System prevents stirrer from free falling; | |
| Clutchless system, with a limit of maximum upper and lower position of the stirrer. | |
| Stirrer motor: | System equipped with 400v Tripus terminal; |
| Electric motor 1,5kW 400V; | |
| Functional buttons: START, STOP; | |
| Stirrer nominal revolutions: 200 rpm. (available speed: 140/200/280 rpm.). | |
| Contact number: +48 788 870 753 | |
| e-mail: sales@teknomatik.eu |
Product Details
Data sheet
- Maximum viscosity of mixing liquid
- 10000 mPa*s
- Stirrer motor
- electric motor 400V
- Engine power
- 1,5 kW
- Stirrer nominal revolutions
- 200 rpm (available speed: 140/200/280 rpm);
- Stirrer’s impeller
- ∅350 mm unfoldable, made of the 316Ti stainless steel
Safety
In the same category
IBC agitator / Stationary electric mixer for IBC containers MSKE-10000
€15,399.60
VAT included
12 520,00
€
Net
Product Comments
