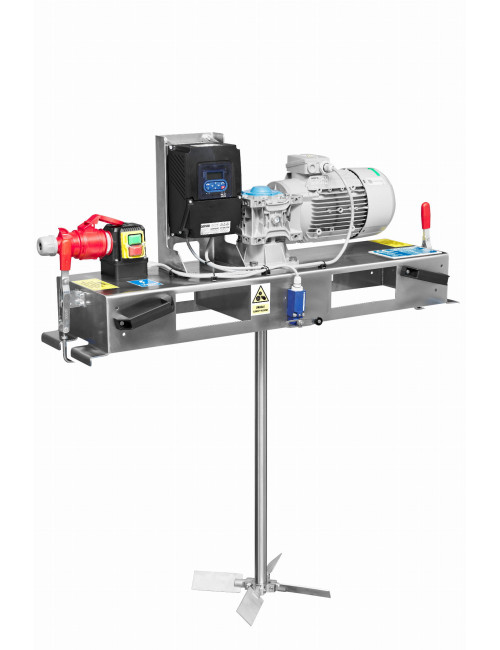

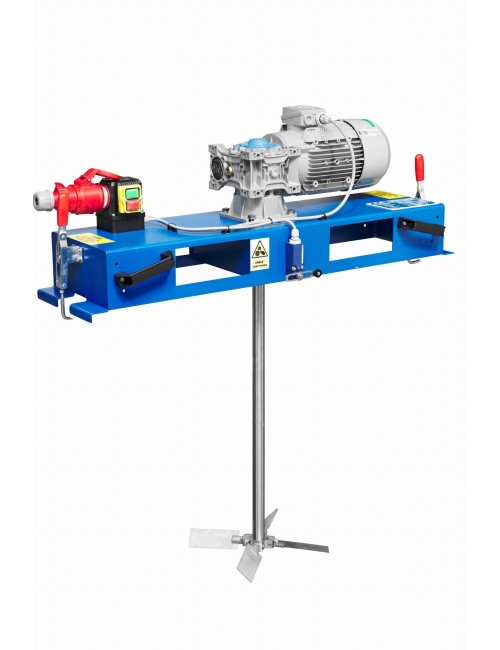

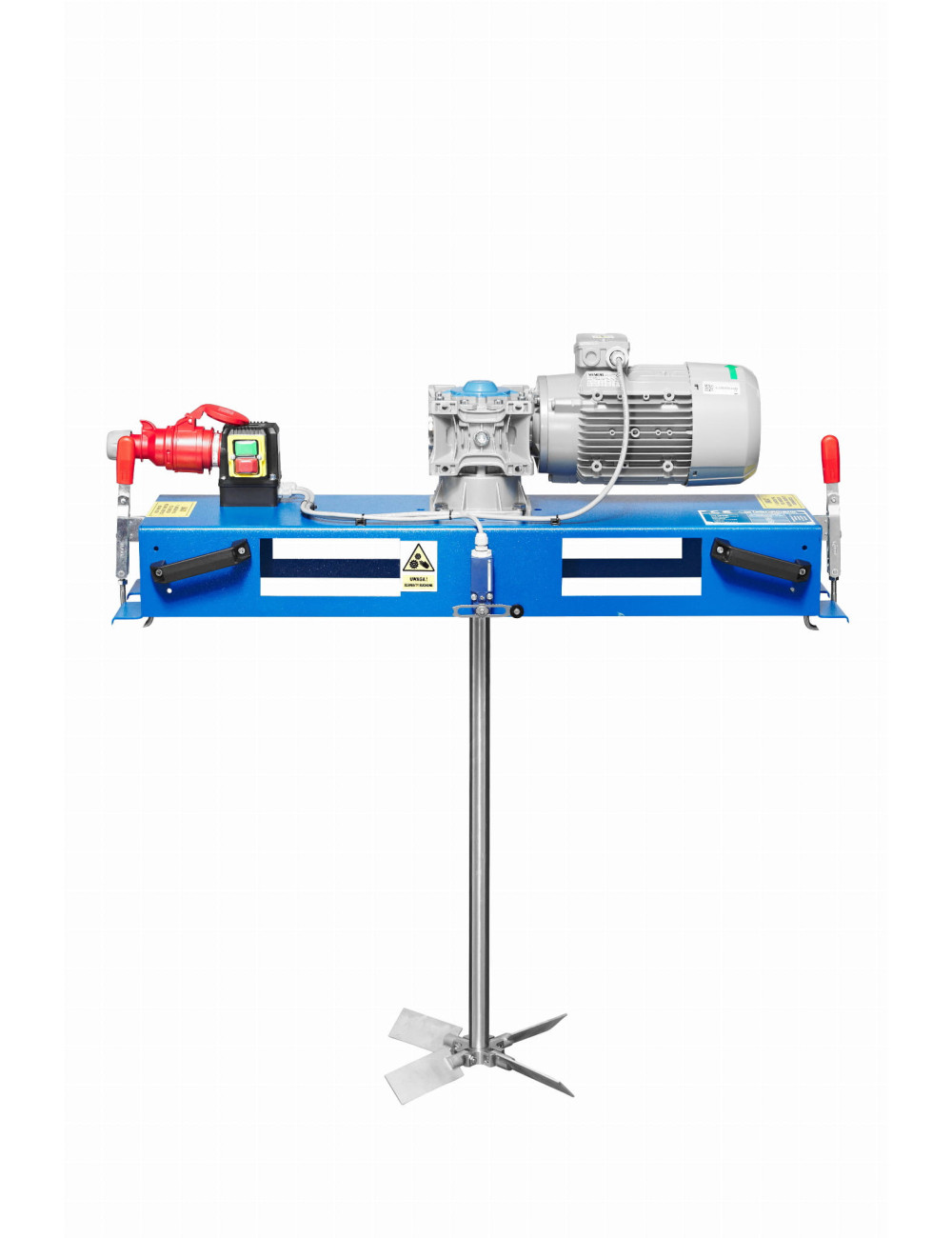

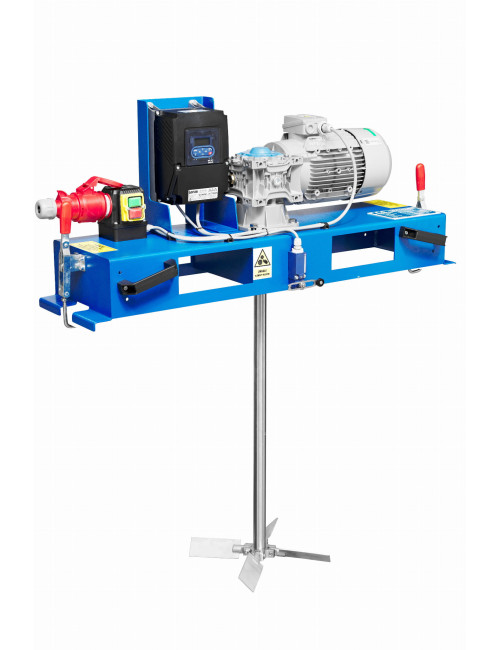

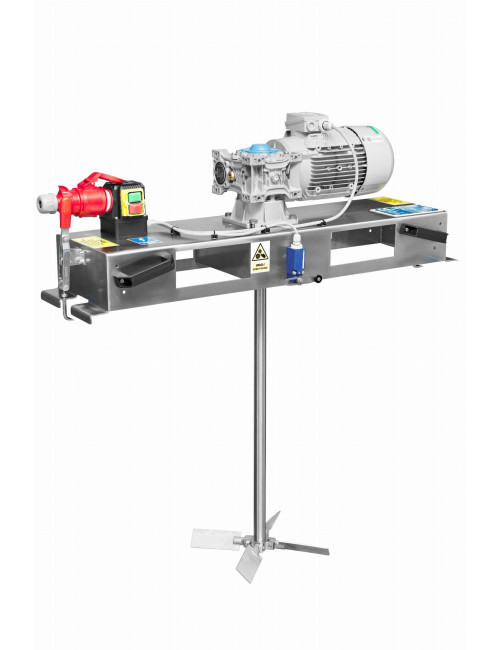

IBC Tote Mixer MKE-10000 — Heavy-Duty, Food-Grade
This is our bestseller in household chemistry. The MKE-10000 is the heaviest-duty non-ATEX electric IBC mixer we build: 1.5 kW (2 HP), 316Ti food-contact propeller, and a built-in overheating cut-out that lets it run continuously without a service technician watching the motor temperature.
One customer comes to mind. A manufacturer of cattle feed substitutes was mixing in 200 L drums for several hours a day, by hand. We sized the MKE-10000 for their viscosity range, they switched to 1000 L IBC totes, and they have been running a continuous line for years since. The same model handles honey, syrups, molasses and edible oils equally well — those are the products that asked for 316Ti food-grade steel in the first place.
What it handles
- Household chemistry — detergents, surfactants, cleaning concentrates. Our biggest segment for this model.
- Food and beverage — honey, syrups, molasses, edible oils, fructose, liquid chocolate.
- Cosmetics and pharma — heavy creams, ointments, balms (1.4301 SS frame option for hygienic upgrades).
- Lubricants, technical greases, gear oils (non-flammable).
- Heavy bituminous compounds, sealants, potting compounds.
Specifications
| Max. viscosity |
10,000 mPa*s (cP) |
| Drive |
electric — 400 V three-phase |
| Motor power |
1.5 kW (~2 HP) |
| Motor |
TEFC IP55, built-in thermal cut-out for continuous duty |
| Speed |
200 rpm — gearbox with single ratio chosen at order: 140, 200 or 280 rpm (200 most popular) |
| Propeller |
folding ∅350 mm, 316Ti food-contact (EC 1935/2004) |
| Shaft |
stainless steel |
| Transport bridge |
painted steel; 1.4301 / 1.4404 stainless option for food and pharma |
| IBC compatibility |
Mauser, Schütz, Werit, Sotralentz, Ecobulk, Van Leer, Greif — DN150 screw cap |
| Documentation |
EC 1935/2004 by default; FDA CFR 21 § 177.2600 paperwork on request |
| Lead time |
typically 2 weeks; 1.4301 hygienic frame option adds about 2 weeks |
Continuous duty — what the thermal protection means in practice
The TEFC motor has a thermal cut-out wired through the contactor. If the motor temperature climbs past the safe limit (jammed propeller, undersized voltage, mechanical overload), the contactor drops and the operator gets a fault. Restart after the motor cools is automatic or manual depending on your control panel. In practice, customers running this mixer in 24/7 production rarely see the cut-out trip — the motor is sized with reserve for 10,000 mPa*s and most batches are well under that.
If you need ATEX
The MKE-10000 is not ATEX. If you mix solvent-based coatings, resins with styrene, ethanol-bearing media or anything that can produce flammable vapours, look at one of the Ex versions:
- MKE-10000 Ex — Zone 1, same ATEX as Full ATEX but with the control box mounted separately outside the zone (cheaper, lighter mixer body).
- MKE-10000 Ex Full ATEX — Zone 1, whole-system Ex.
Full range on the IBC mixers category page.
